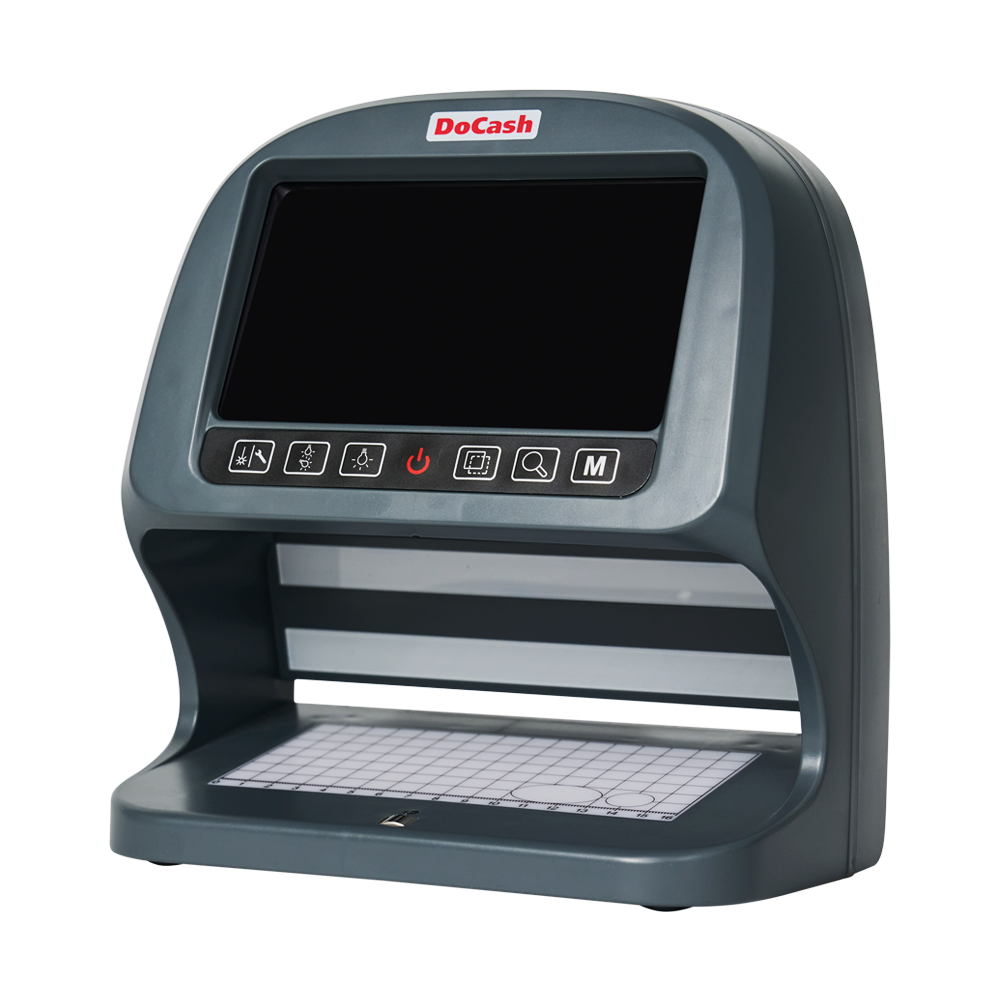

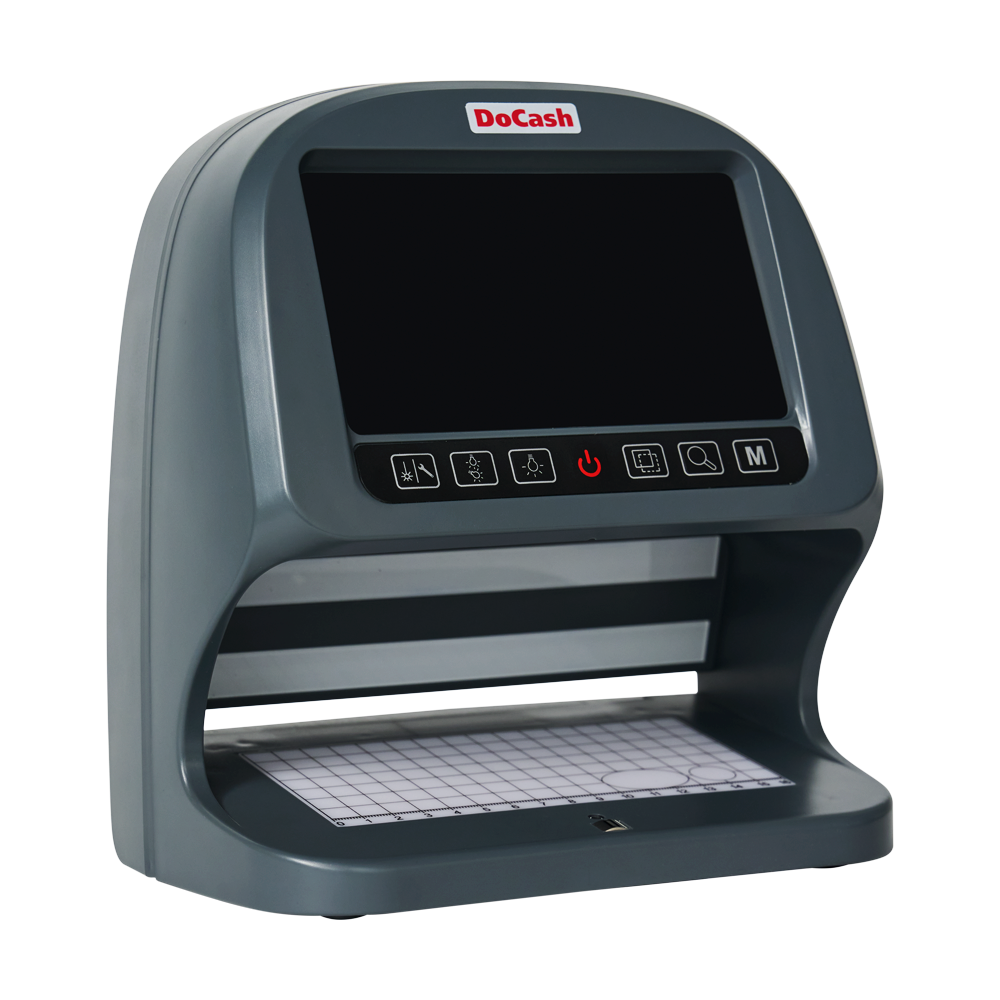

DoCash BIG

Expert complex of banknote counterfeit authentication

Combined currency-viewing detectors of expert level, allowing inspecting all main security features of banknotes, securities and documents

Ask a question about the product

Description

Comprehensive visual inspection of security features of banknotes, securities and documents

Infrared control (visualization of image elements, applied with infrared metascale inks)
Control of the special element "M" (visualization in the dual-band IR illumination mode)
UV control (visualization of general luminescence background and individual image elements)
Magnetic tagging control
Control in white back light
Control in white reflected light
Control in white incident light
Micro-printing control with built-in macro camera with 10x and 20x magnification
Geometric control of banknotes

Large (7´´) LCD color display
Display the IR image of the banknote at a scale of 1:1
The latest generation of UV LEDs provides an intensity of light with a power of at least 18 W
Bright and uniform white top and bottom lighting
Continuous monitoring of infrared tags regardless of switching test modes
Possibility of authentication fan oriented banknotes
Measuring ruler for geometric control of banknotes
Slot for easy viewing of documents up to A4
Configurable automatic shutdown of the machine

Specifications

UV wavelength

360-365 nm

IR emitter wavelength

850/940 nm

Equivalent power of white back light LEDs

Equivalent power of white reflected light LEDs

Equivalent power of oblique white light LEDs

Display: type/diagonal

LCD/7'' (17.8 cm)

Dimensional scale

Power input

max 12 W

Power supply

220 V/50 Hz

Dimensions (WDH)

225х150х265 mm

Weight

1,15 kg
